Okayo Wireless Audio Transmission Set: DL-8H Wireless Microphone + DL-8T Bodypack Transmitter + Okayo SRX-800 Multi-frequency Receiver

3-year warranty.
We offer full technical support, updates, and system service even after the warranty period expires.

The set consists of a compact, dual-channel stationary receiver and 2 wireless transmitters: a wireless microphone and a bodypack transmitter with a lavalier microphone.

The Okayo SRX-800 with the DL-8 wireless transmitter is an excellent entry into the world of wireless audio transmission.
Why choose this system?
Well, the SRX-800 transmits in the digital 823 MHz ~ 832 MHz and 863 MHz ~ 865 MHz bands, which are far from the bands used by popular microphone systems and Wi-Fi. This gives you a secure microphone system free from interference and crackles, which typically plague standard UHF wireless systems.

Okayo offers the latest UHF wireless band in digital technology, providing high-quality sound combined with low latency and distortion-free functionality. It also features a very clear LCD display with essential user information, and the SYNC function helps you easily select an interference-free channel and synchronize microphones. What’s more, the small size of the devices makes them easy to place.

This system offers extremely simple operation and instant channel selection. Two microphone sets can be used simultaneously without issues with frequency or group channel settings. You don’t have to worry about microphones interfering with each other. Furthermore, up to 20 wireless microphones (10 receivers) can be used in the same area without fear of mutual audio transmission interference!

Set contents:
SRX-800 dual-channel stationary receiver with 6.3 mm jack to 6.3 mm jack audio cable and rack-mount accessories
DL-8T wireless transmitter with USB-C charging cable and lanyard
LM-50A lavalier microphone
DL-8H wireless microphone
Set of alkaline batteries

Okayo SRX-800 Receiver Features:
Automatic scanning and receiver-to-transmitter channel synchronization mode
One receiver supports two microphones
Two combined UHF frequency bands 823 MHz ~ 832 MHz and 863 MHz ~ 865 MHz – 42 selectable channels
2 audio output jacks – XLR for amplifier / 6.3 mm jack for mixer
1/4 metal housing with two antennas
Backlit LCD display for easy reading of essential information
Signal strength indicator
Transmitter battery status display
Freestanding receiver with rack-mount option

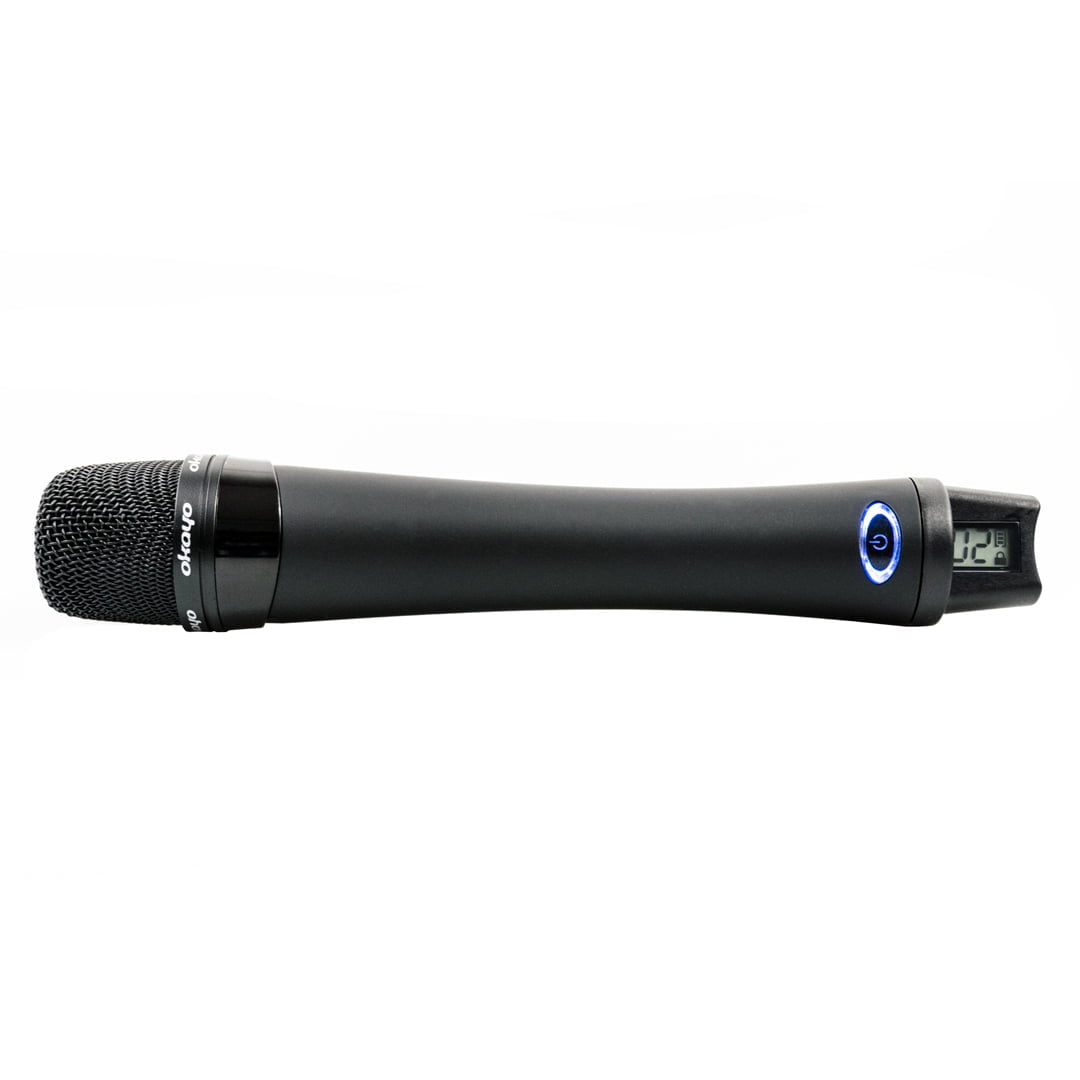

DL-8H Wireless Microphone Features:
42 radio channels in the combined 823 MHz ~ 832 MHz + 863 MHz ~ 865 MHz band
Built-in condenser capsule protected by a mesh grille
Backlit LCD display
Automatic synchronization with receiver
Powered by AA alkaline batteries or Ni-MH AA rechargeable batteries (dedicated HDC-502 desktop charger available)
2 microphone modes available (Push-To-Bolt and Push-To-Talk)
Extremely lightweight and comfortable
Professional design

Okayo DL-8T Transmitter Features:
Small and very lightweight – weighs only 55 g!
Two combined UHF frequency bands 823 MHz ~ 832 MHz & 863 MHz ~ 865 MHz – 42 selectable radio channels
Built-in rechargeable battery ensures stable signal transmission
Over 20 hours of continuous operation
2 – 4 hours charging via USB-C port
Universal 3.5 mm mini jack connector

Okayo SRX-800 Technical Specifications:
Frequency band: 823 ~ 832 MHz & 863~ 865 MHz
Number of channels: 42
Emission modulation: 4 GFSK
T.H.D. (Total Harmonic Distortion): <3 % SNR (Signal-to-Noise Ratio) >75 dB
Frequency response: 100 ~ 8000 Hz
Latency <10 ms
Unbalanced 6.3 mm output: Hi (High): 1250±100 mV / Low: 50±100 mV
Balanced XLR output: 650±50 mV
Transmission range: Hi: 70+ meters / Lo: 50+ meters
Operating temperature range: -10°C ~ 60°C
Dimensions: (W x D x H): 117 x 190 x 50 mm (without antennas)
Weight: 640±30 g

Okayo DL-8H Technical Specifications:
Microphone type: Condenser
Capsule type: Cardioid
Polar pattern: Unidirectional
Frequency band: 823 ~ 832 MHz & 863~ 865 MHz
Number of channels: 42
Emission modulation: 4 GFSK
T.H.D. at 1 kHz (Total Harmonic Distortion): <1.5 % Signal-to-noise ratio: >75 dB
Frequency response: 130 ~ 7000 Hz
Signal output power: 10 mW / 20 mW
Power supply: 2 x AA
Operating time: Over 13 hours
Transmission range: Hi: 70+ meters / Lo: 50+ meters
Operating temperature range: -10°C ~ 60°C
Dimensions (D x H): 37 x 200 mm
Weight (without batteries): 90±5 g

Okayo DL-8T Technical Specifications:
Frequency band: 823 ~ 832 MHz & 863~ 865 MHz
Number of channels: 42
Emission modulation: 4 GFSK
T.H.D. at 1 kHz (Total Harmonic Distortion): <1.5 % Audio sampling: 24 kHz Dynamic range: >80 dB
Frequency response: 100 ~ 10000 Hz
Latency <11 ms
Signal output power: 10 mW / 20 mW
LCD display: 0.66” TN
Microphone jack: 3.5 mm mono jack
Charging connector type: USB-C / 800 mA
Power supply: Li-Poly 3.7 V / 1300 mAh rechargeable battery
Operating time: Up to 25 hours
Transmission range: Hi: 70+ meters / Lo: 50+ meters
Operating temperature range: -10°C ~ 60°C
Dimensions (W x D x H): 44 x 81 x 15 mm (without antenna)
Weight: 55 g
